MODULE SUPERIOR LINE MEN

Sanitary Module

  • AVAILABLE IN SPAIN
  • luxury equipment
  • 4 urinals
  • 2 bathing cabins
Product Description
Our Services
  • We advise
  • We deliver
  • We clean
  • We dispose
  • We collect

Product Description

SUPERIOR LINE MODULE

TOI TOI® Superior Line men's toilet cubicle: a new dimension.

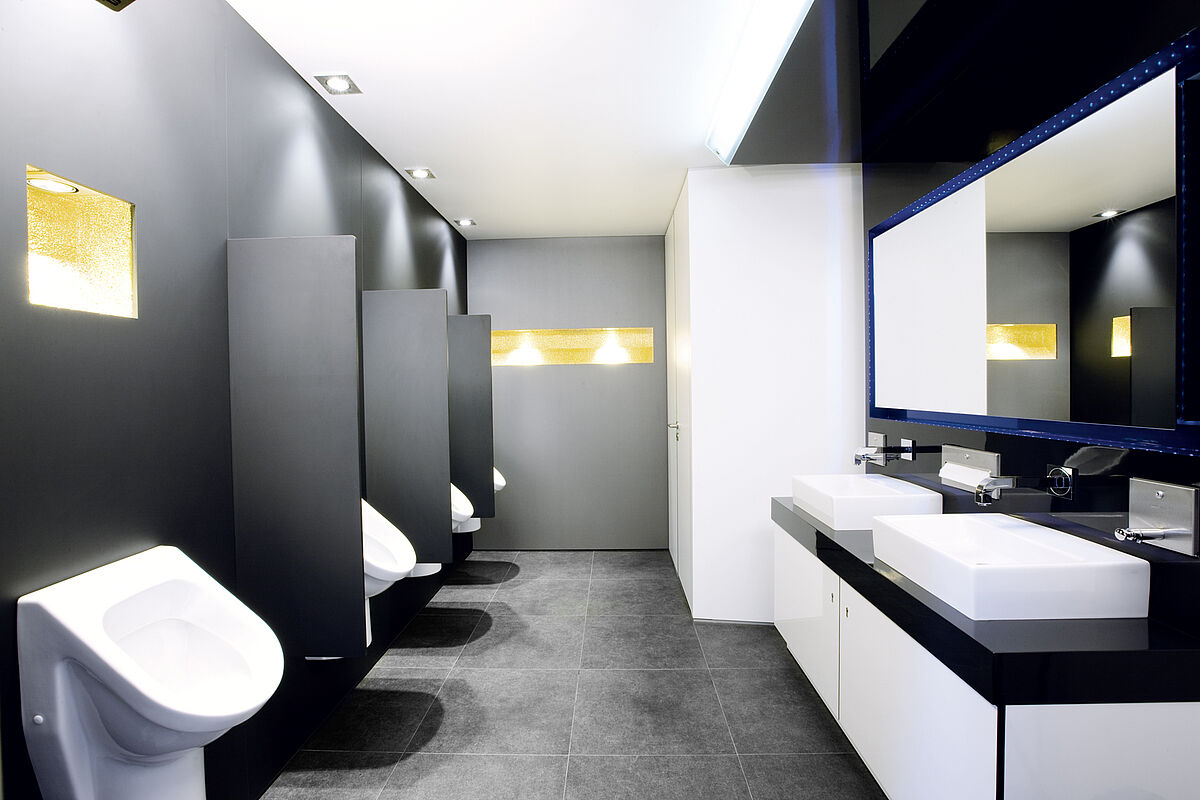

With its high-tech equipment and luxurious design, the TOI TOI® Superior Line men's sanitary container represents a new dimension in mobile sanitary modules. The bathroom for him is very elegant in the colors black, white and gray and has a clear and simple design language.The focus is on functionality: in combination with high-quality materials, this results in a convincing concept. Depending on the area, the sophisticated lighting design uses functional or ambient light. Underfloor heating, air conditioning, an aromatization system and a BOSE sound system ensure a pleasant ambience.

More function. More comfort. More design.

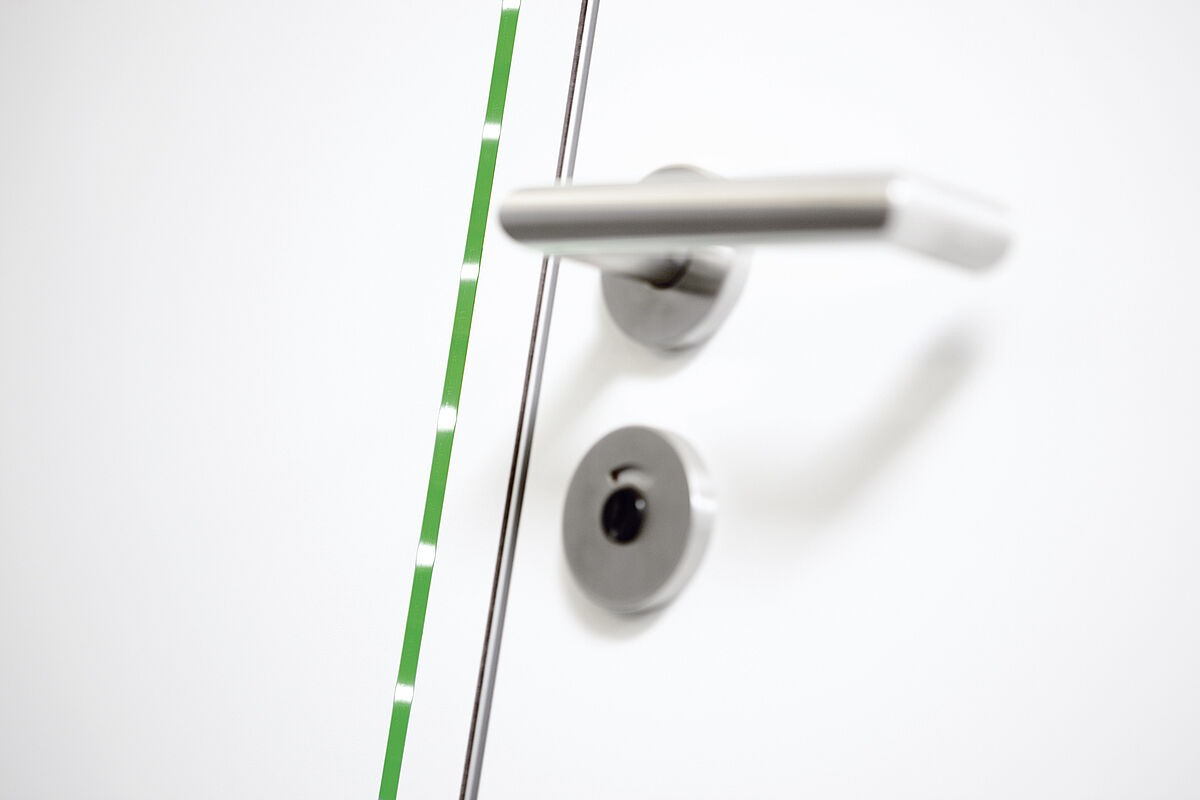

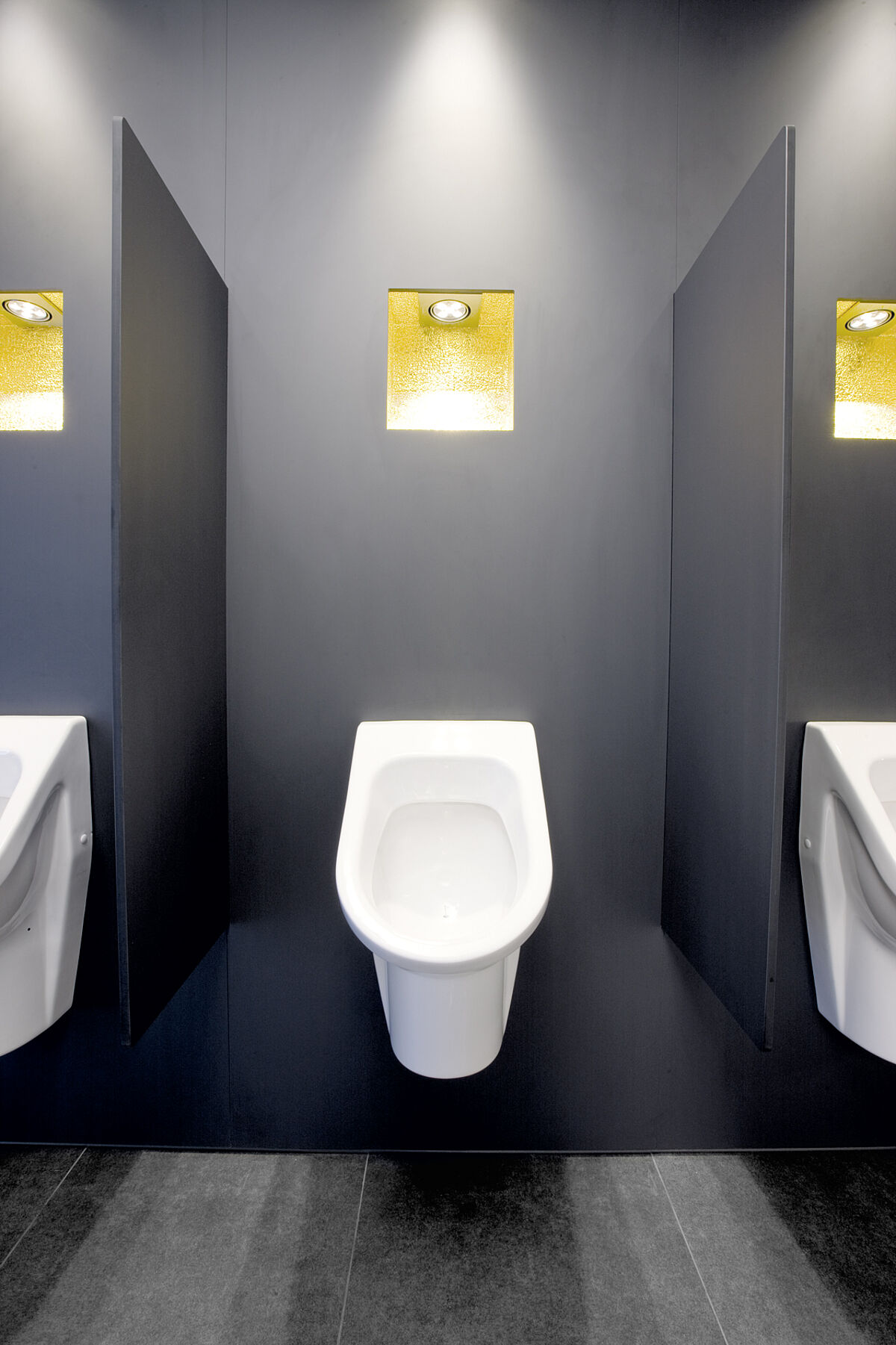

One of the special features of this spacious sanitary container is the 46-inch screen in the entrance area, on which, for example, movies with company images can be shown. Individual enclosed room-high cabins with their own air exhaust system, a vacancy/occupancy display with LED technology, accessories and touch-free urinals are further contemporary conveniences.

When it comes to the fittings, attention was paid not only to functionality and comfort. The materials and fittings incorporated harmonize in design and form and suit the lifestyle of a discerning user. The washbasin from Villeroy & Boch, the fittings from Hansgrohe: every detail of the fittings is an expression of a refined bathroom culture.

noteworthy

  • INSTALLATION SITE AT GROUND LEVEL, FIRM SUBSOIL
  • CLEAN WATER/WASTEWATER CONNECTION REQUIRED, MAINS CONNECTION (400 V / 32 A)
  • OFFICIAL APPROVAL FOR SEWAGE DISPOSAL REQUIRED AS A RULE
  • OPTIONAL CONNECTION WORK BY OUR TRAINED SPECIALISTS
  • Technical Specifications
  • - Length / Width: 6,058mm / 2,990mm
  • - Weight: 6,400 kg
  • - Outer height without lifting eyes: 2,920 mm (2,920 in)
  • - Exterior height with lifting eyes: 3,050 mm (3,050 mm)

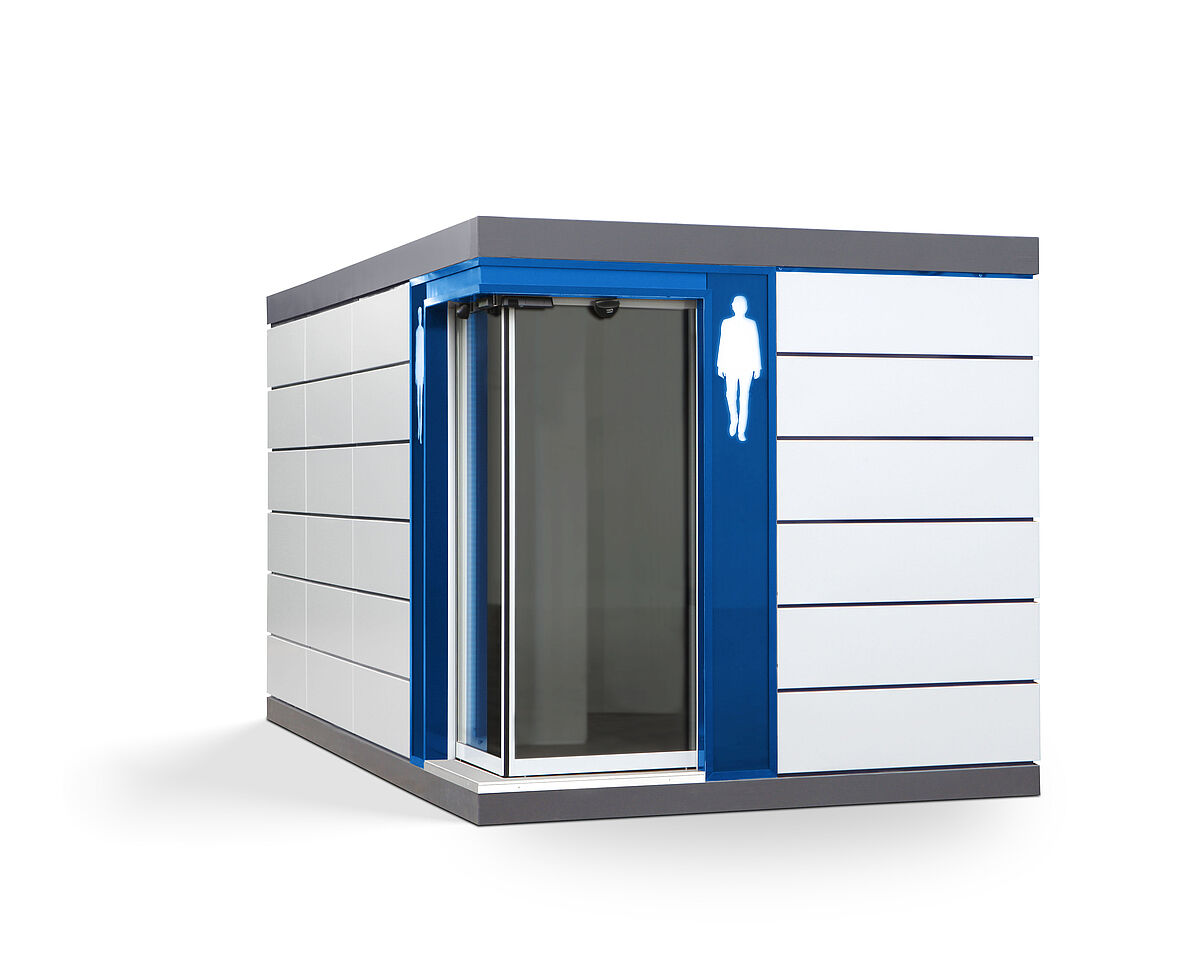

  • - Exterior façade: coffered aluminum sheeting in gloss white with backlit Man pictograms
  • - Current: 400V / 32A
  • - Fresh water: ¾" Geka coupling.
  • - Hot water: 5 l hot water tank
  • - Sewage: HT NW 100 pipe
  • - Heating: electric underfloor heating / air heater
  • - Air conditioning: 2.5 kW cooling capacity
* Subject to technical changes
  • Equipment
  • - Light niches: Gold-plated light niche with integrated ventilation duct, one downlight each: 3 W LED downlights / washbasin lighting element
  • - Light: LED floor spotlights (2 pcs. per toilet)

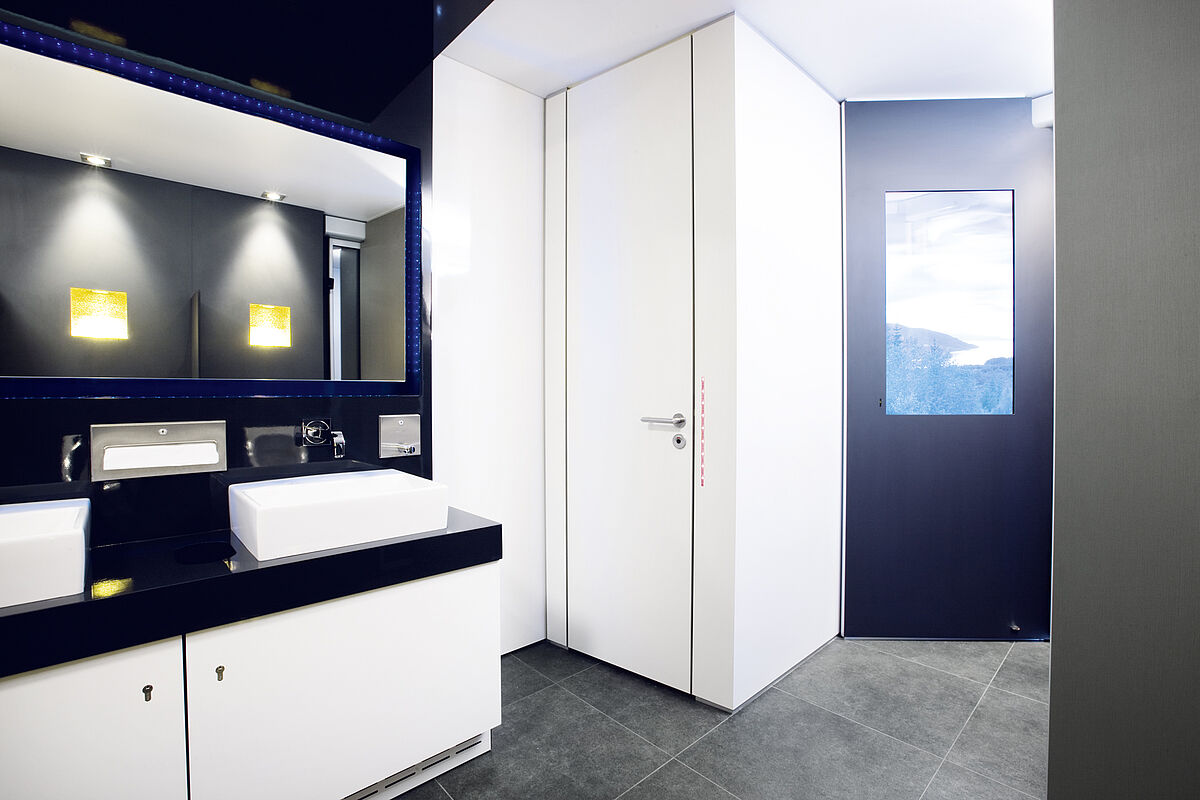

  • - 46" LED screen: Samsung SyncMaster 460
  • - EXN, 117 cm screen diagonal, with integrated PCSound: BOSE sound system
  • - Toilet cubicles (2): Floor-to-ceiling partition system

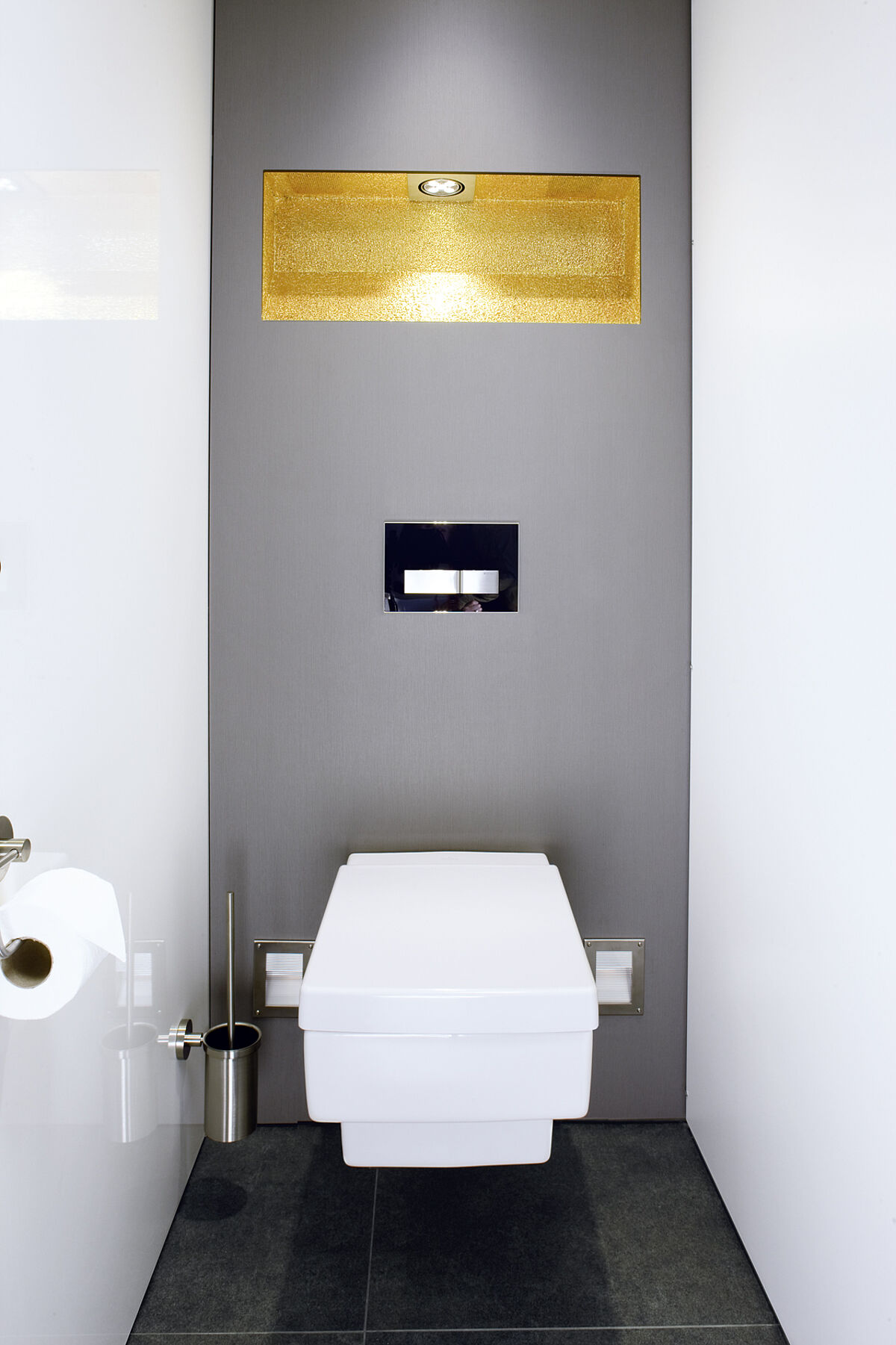

  • - Toilets (2): Villeroy & Boch Subway 2.0
  • - Toilet flush plates: Geberit Sigma 50 black RAL 9005/stainless steel
  • - Toilet paper holder: KEUCO
  • - Toilet brushes: KEUCO

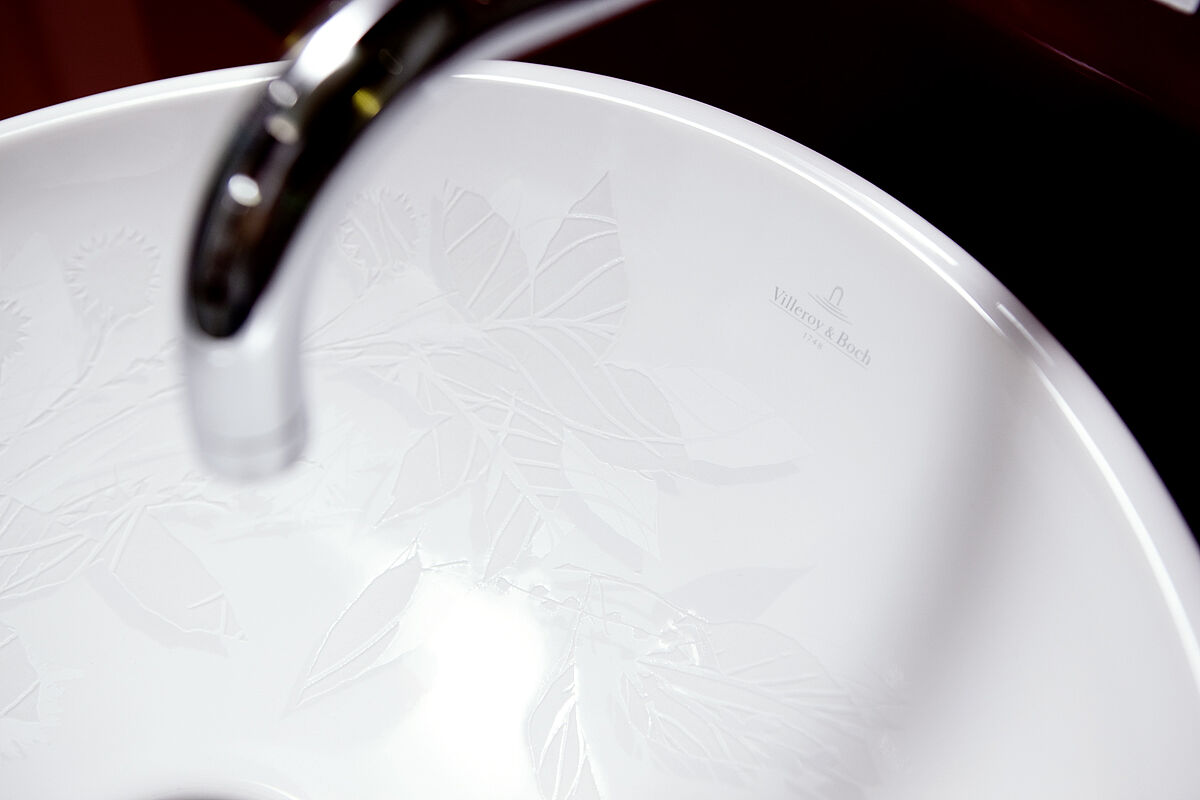

  • - Washbasins (2): Villeroy & Boch My Nature

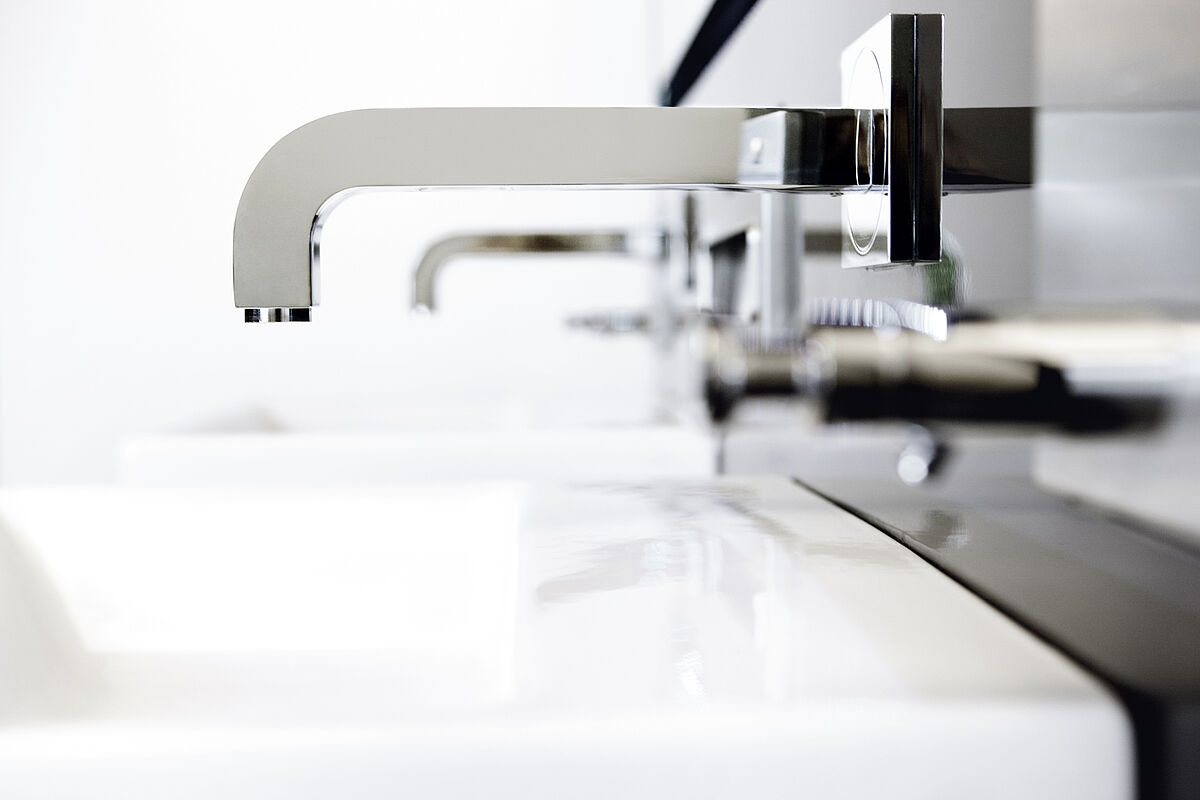

  • - Equipment: Hansgrohe Axor UNO 22 cm with infrared sensor
  • - Soap dispenser: Wagner-Ewar, stainless steel
  • - Paper towel dispenser: Wagner-Ewar, stainless steel
  • - Fragrance system: ASSADA
* Interior may vary

How it works

Information about order and products

CONSULTING AND PLANNING

Do you have questions about our services or our products? Our experienced TOI TOI & DIXI experts will analyze your requirements, work out the right solution and, if you wish, manage the entire project coordination, including site inspections with the authorities involved and obtaining all permits. Contact us, we will be happy to advise you on all questions concerning:

  • requirements planning
  • guidance systems
  • delivery and collection
  • official permits

WE DELIVER AND COLLECT

We deliver our containers to the desired location, position them there according to requirements and also collect them again. Together with our logistics partners, we provide a reliable service.

CLEANING

Tested hygiene & disinfection: Our containers are hygienically disinfected and tested before and after use. Our trained specialist personnel carry out these cleanings according to firmly defined specifications. We offer you the service you need on site.

ASSEMBLY AND CONNECTION WORK

Total service for your project: TOI TOI & DIXI takes care of all the necessary work steps, depending on your requirements - from professional assembly to connection work for water, sewage and electricity to dismantling. If required, we also take over the substructure of the containers, offer repair services and undertake measures for the extension, conversion or interior fitting of the containers.

INDIVIDUAL EQUIPMENT CONCEPT

The mobile room container adapts to your needs: Depending on the intended use, we will be happy to create and implement your individual furnishing concept. The TOI TOI & DIXI equipment program offers the right solution for every need.
